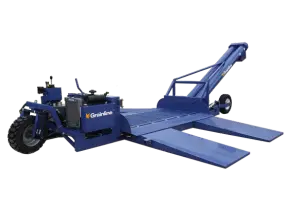

Drive Over Hopper

Self-Propelled,
Independent power.

Introducing Grainline’s Self-Propelled Drive Over Hopper! Quick and easy to shift with hydraulic lift, drive, and steer.

Featuring a large hopper with a low-profile design, it’s built to withstand harsh Australian conditions and ensures safe, efficient operations without splitting trailers or reversing trucks.

Drive Over Hopper Features:

Hydraulic Drive & Steering

Moving the drive over hopper is safe and effortless with a large steerable drive wheel. The wheel is driven directly by high torque, dual drive hydraulic motors and precise steering makes it easy to reposition.

46hp Water Cooled Yanmar Diesel Engine

The reliable water cooled Yanmar Diesel Engine will ensure maximum efficiency for the drive over hopper and years of trouble free service backed up by Yanmar’s large service network.

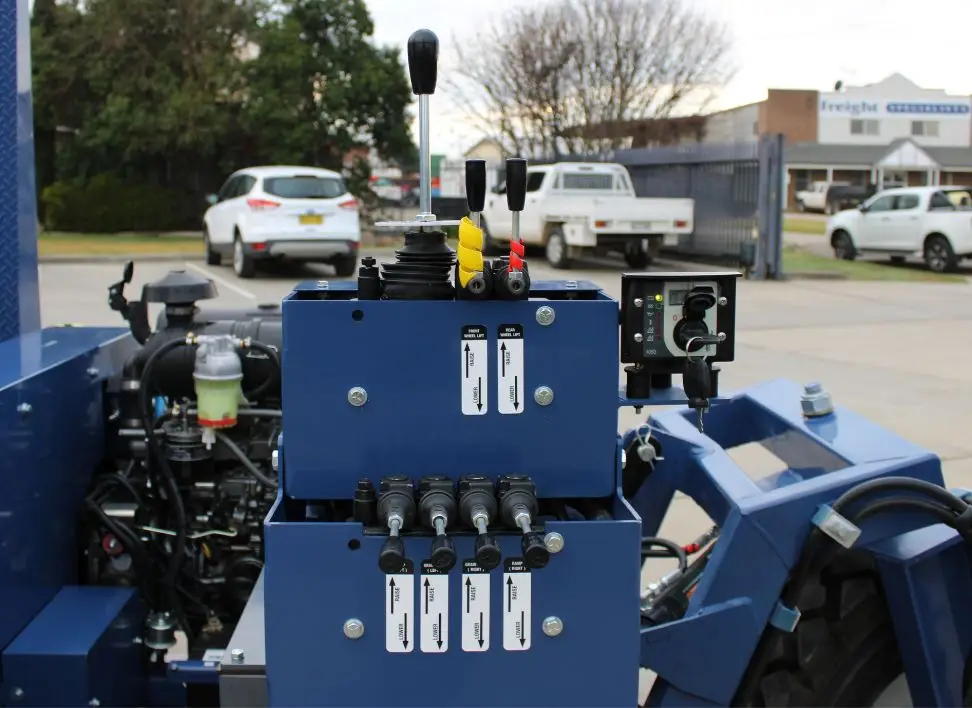

Easy-to-use hydraulic controls and standing platform

The Hydraulic controls are conveniently located next to the engine ignition and other controls. The joystick is used to drive and steer the hopper with precision, with controls directly beside the joystick to raise and lower the wheels. The second bank of levers control the raising and lowering of the anti-spill gates and ramps.

Rotatable Rear Wheels with Hydraulic Raise & Lower

The large rear wheels are raised and lowered hydraulically and can be rotated 90 degrees to allow easy movement in any direction.

Hydraulic folding ramps

The ramps and anti-spill gates are effortless to control with independent hydraulic controls for each ramp and anti spill gate.

Heavy Duty Hopper

The hopper has been designed and built to withstand the harshest environments and the removable grates provide easy access to the hopper flights and bearings.

Model Specifications

Engine	Augers	Hopper Flights	Auger Outlet Height	Hopper Dimensions	Operational Dimensions	Transport Dimensions	Standard Features
46hp Water cooled Yanmar diesel engine	2 x 12" augers	5 x 6" auger flights	1.97m	3.3m w x 1.5m l x 0.24m h	9.9m w x 6.5m l x 2.6m h	9.9m l x 2.0m w x 2.7m h	Hydraulic drive wheel and steering. Hydraulic ramp and gate folding.

Drive Over Hopper

The short clip below showcases the ultra easy operation of the hydraulic ramps.
