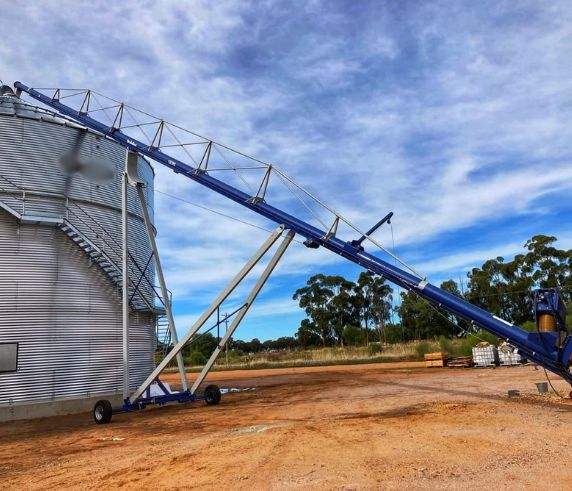

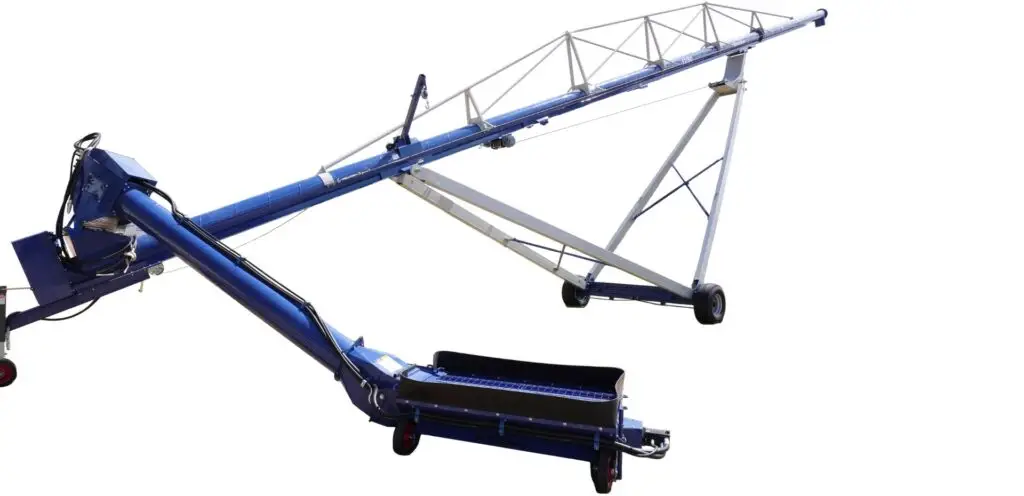

12″ SWING AWAY AUGER

Virtually maintenance-free with greaseless bearings, no gearboxes or universal joints, and a clean driveline design.

Experience up to 220 tons per hour with Grainline’s 12″ Swing Away Augers. These augers are designed for maximum performance and ease of use, built to endure harsh environments with a robust truss assembly for superior stability and a reversible PTO connection.

Swing Away Auger Features:

Efficient Power Transmission: The direct drive system provides smooth and consistent power, eliminating the need for a gearbox, reducing complexities.

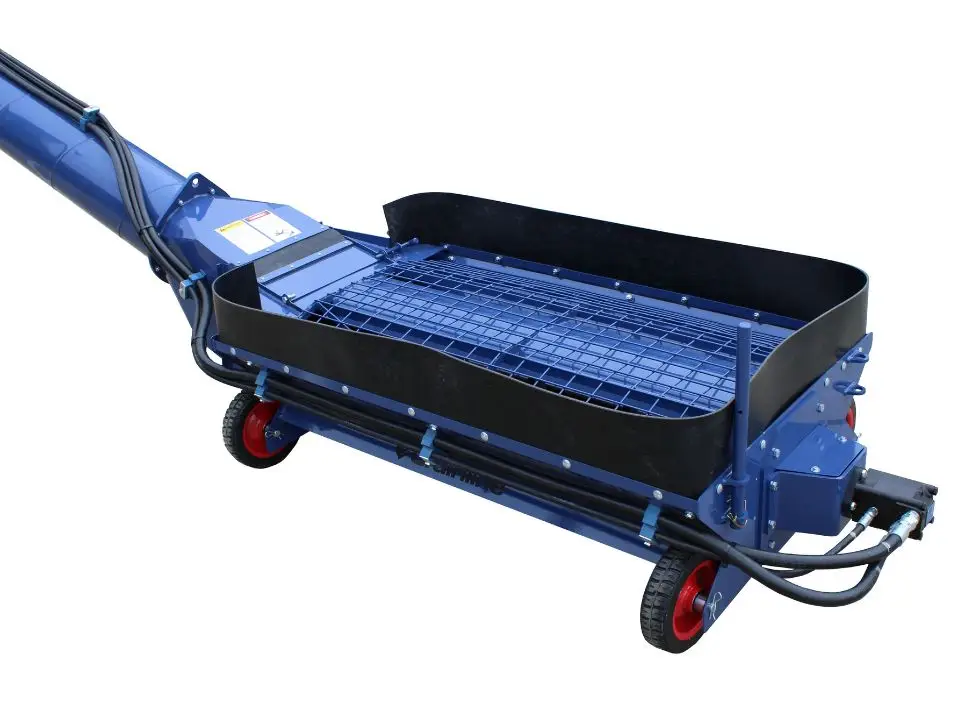

Hydraulically driven hopper

Benefit from quieter operation thanks to the hydraulic motors that eliminate the requirement for gearboxes and universal joints, providing a reliable drive with minimal service parts.

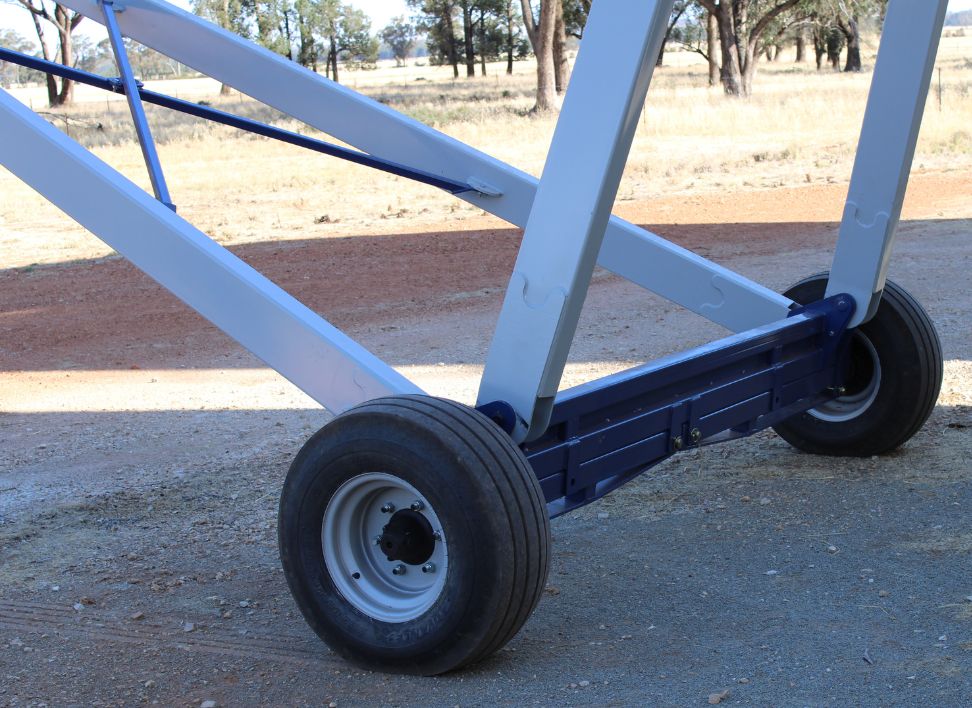

Heavy Duty Extendable Axle

The extendable axles provides additional stability and support when operating at steeper angles.

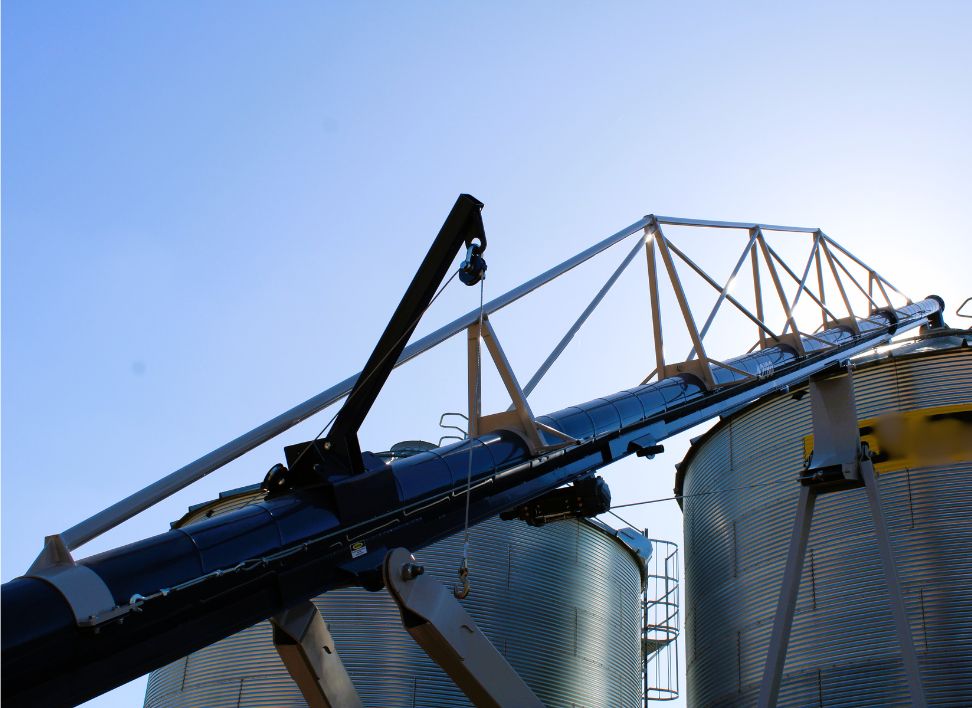

Robust truss assembly for maximum stability

The heavy duty solid truss ensures minimal barrel sag and movement even at the steepest operating angles and when towing on rough terrain.

Heavy duty A frame undercarriage

The heavy duty undercarriage has been designed to withstand the harshest of conditions and has an integrated kicker to reduce lifting strain.

Reverser

The auger comes standard with a reverser option, making cleanout fast and easy.

Grain Flow Site Glass

The benefit of a grain flow site glass on an auger is that it allows operators to visually monitor the flow of grain through the auger in real time. This feature is particularly valuable as it helps ensure the auger is functioning correctly and efficiently, confirming that grain is moving smoothly without blockages or interruptions. It provides immediate feedback, enabling operators to make quick adjustments to the auger's operation, which can help prevent damage to the grain or equipment and optimize the transfer process for better productivity and reduced downtime.

Available Lengths

Model Specifications

All models include clean out trap door mechanism.

Barrel	Flighting	Height (40 degrees)	Horizontal Reach	Transport Height	Transport Length	Capacity @ 40 degrees	Extendable Axel	Hopper	PTO Speed	Tractor Requirements (Hydraulic)	Tractor Requirements (Horse Power)
24m x 305mm x 3mm	280mm x 280mm x 4.8mm	16.2m	7.9m	3m	23.9m	220 T/hr	3.3m > 4.7m	Self Leveling	540	Min. 65 LPM (with hydraulic cooling & case drain fitted)	100

Barrel	Flighting	Height (40 degrees)	Horizontal Reach	Transport Height	Transport Length	Capacity @ 40 degrees	Extendable Axel	Hopper	PTO Speed	Tractor Requirements (Hydraulic)	Tractor Requirements (Horse Power)
29mm x 305mm x 3mm	280mm x 280mm x 4.8mm	19.4m	8.5m	4m	28.9m	220 T/hr	3.3m > 4.7m	Self Leveling	540	Min. 65 LPM (with hydraulic cooling & case drain fitted)	120

Swing Away Auger Showcase

Explore the features of Grainline’s Heavy-Duty Swing Away Augers through our detailed showcase video.
